PRODUKTE | Verteilergetriebe

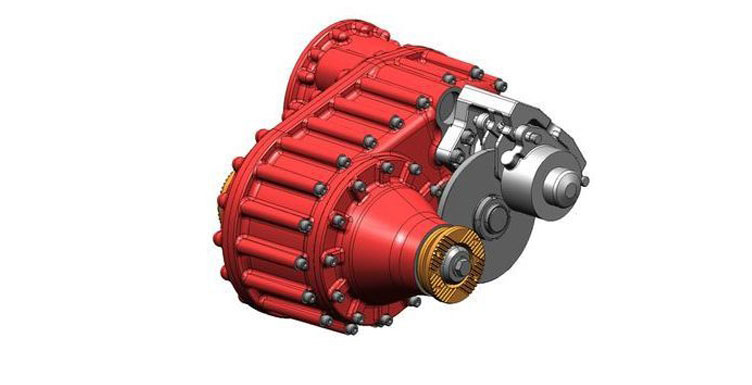

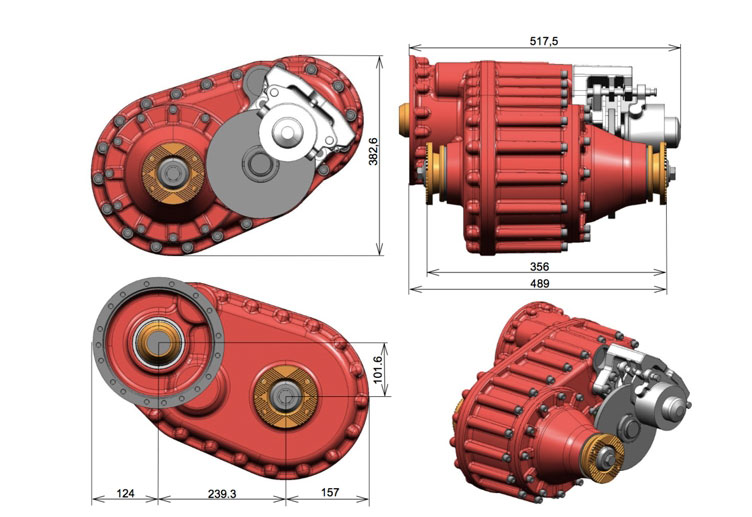

TYPE | OPS-005P DIRECT MOUNT TRANSFER CASE
| Max Input Torque | 5.000 Nm |
| Maximum Input Speed version V1 | 4.000 RPM |
|---|---|
| Total Offset Distance | 260 mm |
| High Speed Ratio | 3,64 |
| Low Speed Ratio | 7,5 |
| Split torque differential Ratio | 50:50 with Lock |
| Shifting | air operated, electrical signal in high and low speed position air operated, electrical signal in differential lock on position air pressure 6,5÷9,5 bar |
| Lubrication – internal oil pump, possibility of external cooling circuit | |
| Oil Capacity | approx. 4 l |
| Oil Specification | SAE 75W-90, Multi-Purpose Gear Oil, API-GL-5 or MIL-L-2105C or CD |
| Maximum Working Temperature | 125°C |
| Weight | approx. 98 kg |
| Flanges | Input : Direct mount to Allison 2500 |
| Front Axle : KV120 | |
| Rear Axle : KV120 | |
| Parking Brake Type | KNOTT FSG90, 70% slope capability for GVW 7,5t |
| Direct mount provision | For Allison 2500 |
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
